Heavy Duty Racking

Heavy Duty Rack Warehouse Storage-DC130

The Maximum Load Bearing For Each Shelves (KG)

Model: DC130 Super heavy duty racking series

Model

Length



2000mm

2500mm

3000mm

3500mm

H1

1000kgs

600kgs

400kgs

-

H2

1800kgs

1200kgs

400kgs

-

H3

2700kgs

1900kgs

1300kgs

-

H4

4000kgs

3000kgs

2400kgs

2000kgs

Customized Available

Product Specifications

Product Name

Heavy Duty Rack Warehouse Storage

Model Number

DC130

Materials

High-grade Q235 Cold Rolled Steel

Loading Capacity

1000~5000Kgs/Layer (Customized)

Racking Height

2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 / 5500

6000 / 6500 / 7000 / 7500 / 8000 / 8500 / 9000 mm (Customized)

Racking Max Height

9000 mm  (Customized)

Racking Depth

450 / 500 / 550 / 600 / 650 / 700 / 750 / 800 / 850

900 / 950 / 1000 / 1050 / 1100 / 1150 / 1,200 mm (Customized)

Beam Length

1200 / 1500 / 1800 / 2000 / 2500 / 3000/ 3500mm (Customized)

Racking Finish

Frames Powder Coating

Beam Powder Coating

Post Powder Coating

Color

Blue/Grey/Orange/Black (Customized)

MOQ

By negotiated

OEM/ODM

Available

Payment

30% deposit and 70% on or before delivery by T/T.

Delivery Date

Within 15 - 35 days after deposit

Packing Details

Standard export seaworthy packing

Our Advantage

Custom Free Design,Professional Design Team

The Price Of Heavy Duty Rack Warehouse Storage-DC130

There is no fixed price for heavy-duty storage shelves. The price is generally designed according to the customer's warehouse conditions and requirements (such as the load-bearing requirements of the shelves, the thickness of the column pieces, etc.), and then the price can calculated.

If you want an accurate price, generally speaking, the price of heavy-duty storage shelves can range from 60 to 300 US dollars per set. The difference is mainly determined by the selection of shelf materials, load bearing required, production process, and material consumption.

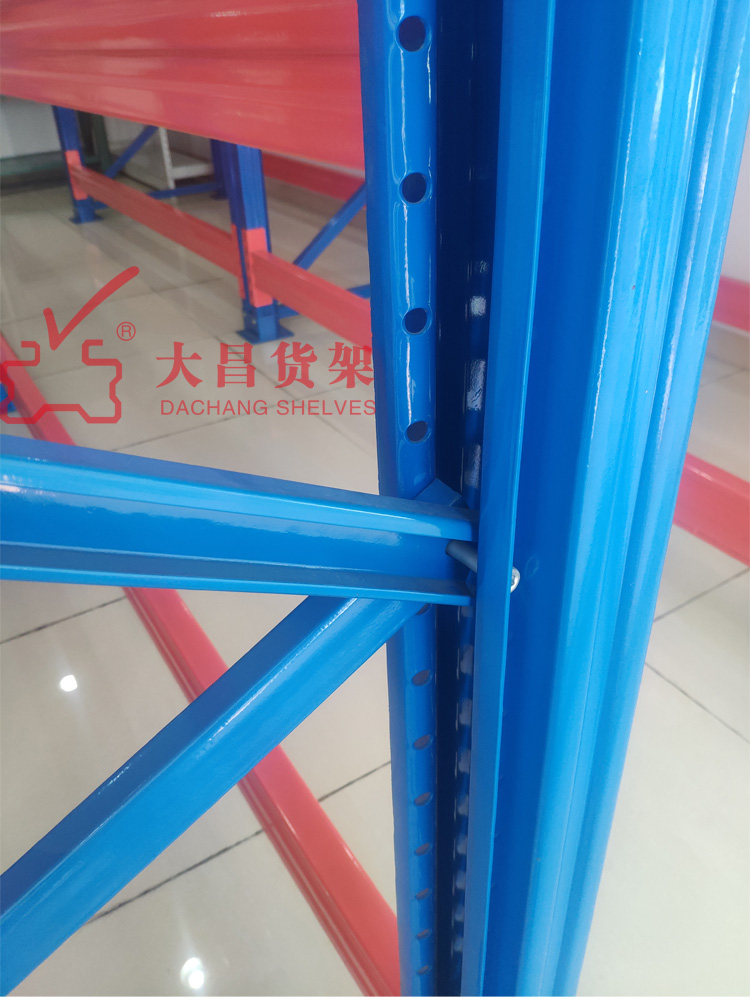

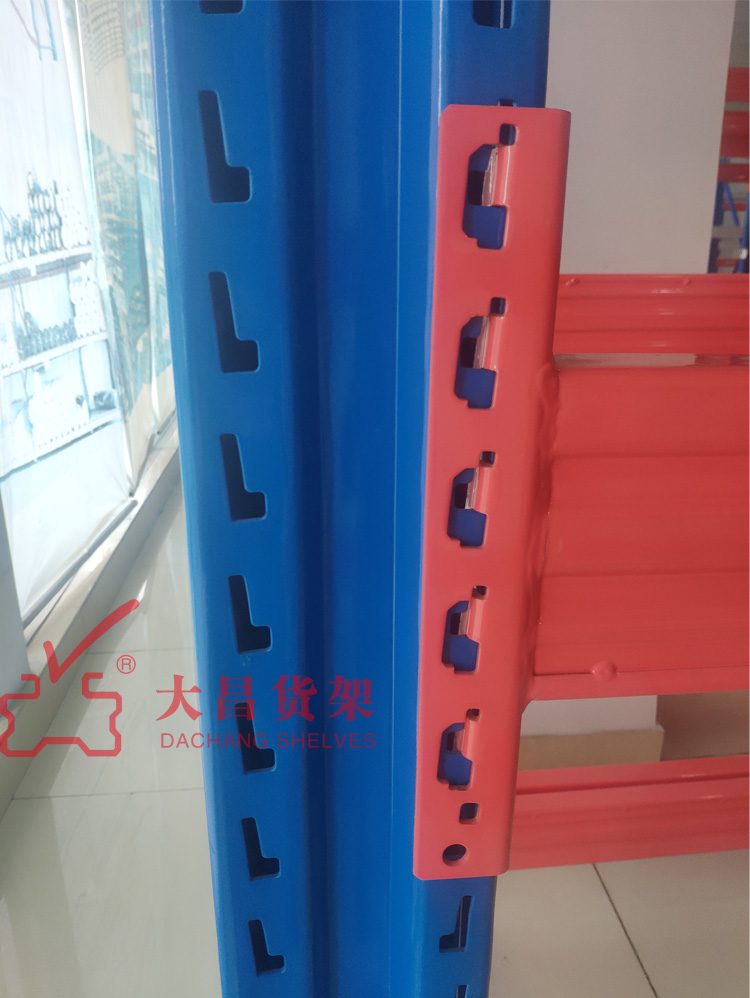

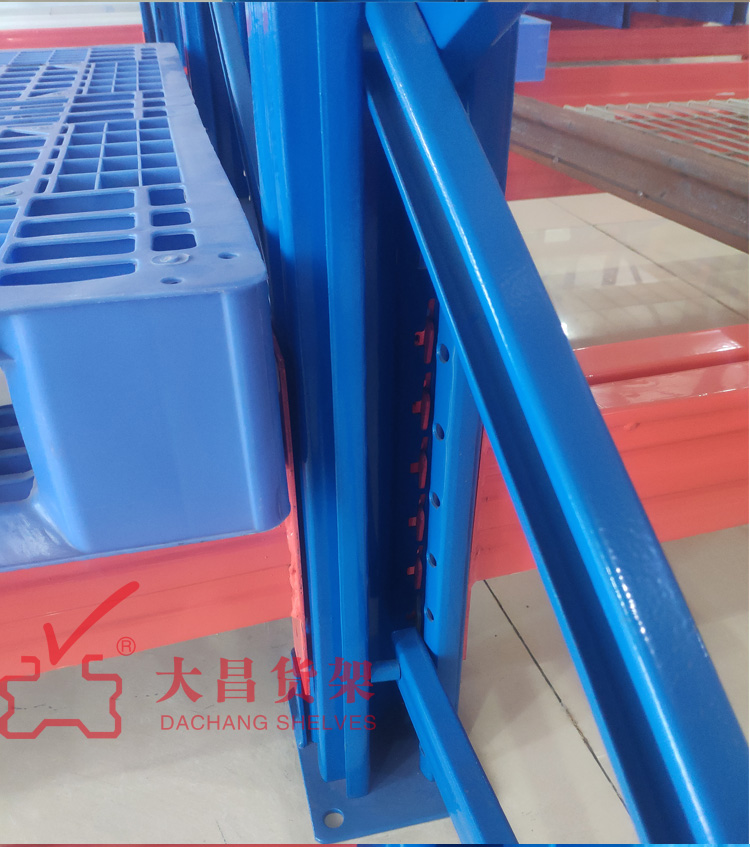

Dachang Racking & Shelving heavy-duty storage shelves are made of national standard high-grade Q235 cold rolled steel, and the finished shelves have passed the 1.6 times safety factor test. Model DC130 has the characteristics of strong load-bearing capacity and light weight. The column adopts a C-shaped steel structure, and the beam adopts a welded beam structure. It is processed by automatic robot welding technology, which is sturdy and beautiful. It adopts 3.0 anti-load technology and can reach level 8 earthquake resistance. effect, long service life and strong practicability.
